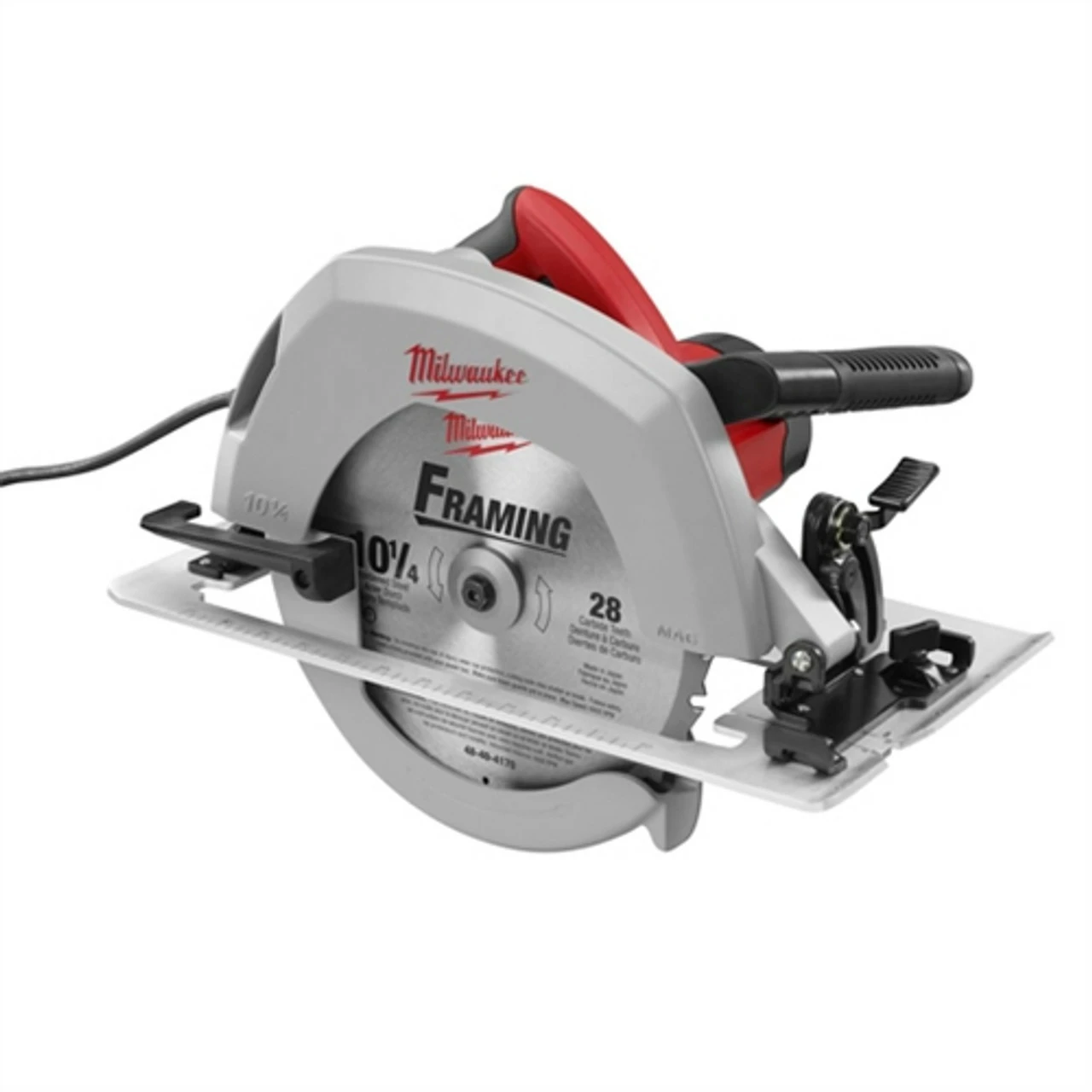

Milwaukee 10-1/4 in. Circular Saw

Model Number: 6470-21

The 6470-21, 10-1/4 in. Circular Saw is built with the power and capacity to handle the most extreme cutting applications. The powerful 15 Amp, 5,200 RPM Motor delivers maximum power for high performance cutting without bogging down under load. An Aircraft Aluminum Shoe will not bend or warp in extreme cutting applications. The Electric Brake increases productivity by stopping the blade in seconds. These heavy duty features combined with the 3-13/16 in. depth of cut capacity and 60 degree bevel capacity make the 6470-21 the most popular 10-1/4 in. Circular Saw in the industry.

Features:

• Powerful 15 Amp, 5,200 RPM Motor – delivers maximum power for high performance cutting without bogging down under load
• 3-13/16 in. Depth of Cut Capacity – Provides enough capacity to cut 4 in. material in a single pass
• Aircraft Aluminum Shoe – will not bend or warp in extreme cutting applications
• Electric Brake – increases productivity by stopping the blade in seconds
• 60 degree Bevel Capacity – provides maximum bevel capacity for cutting roof rafters, trusses and joists

Specifications:

• Length 17-1/2 in.
• Weight 17.8 lbs
• Voltage 120V AC
• Tool Warranty 5 Years
• Cord Type 2-Wire
• No Load RPM 5,200
• Amps 15
• Spindle 5/8 in.
• Construction Type Double Insulated
• Soft Grip Handle Yes
• Spindle Lock Yes
• Arbor Size 5/8 in.
• Depth of Cut at 45 Degrees 2-3-4 Inch
• Depth of Cut at 90 Degrees 3-13/16 in.
• Electrical Brake Yes
• Blade Position Right
• Tool Free Bevel Yes
• Maximum Bevel Capacity 60 degrees
• Depth of Cut at 60 Degrees 1-3/4 in.

Includes:

• (1) 10-1/4 in. Circular Saw (6470-21)
• (1) Rip Fence
• (1) Steel Case
• (1) Wood Cutting Blade
