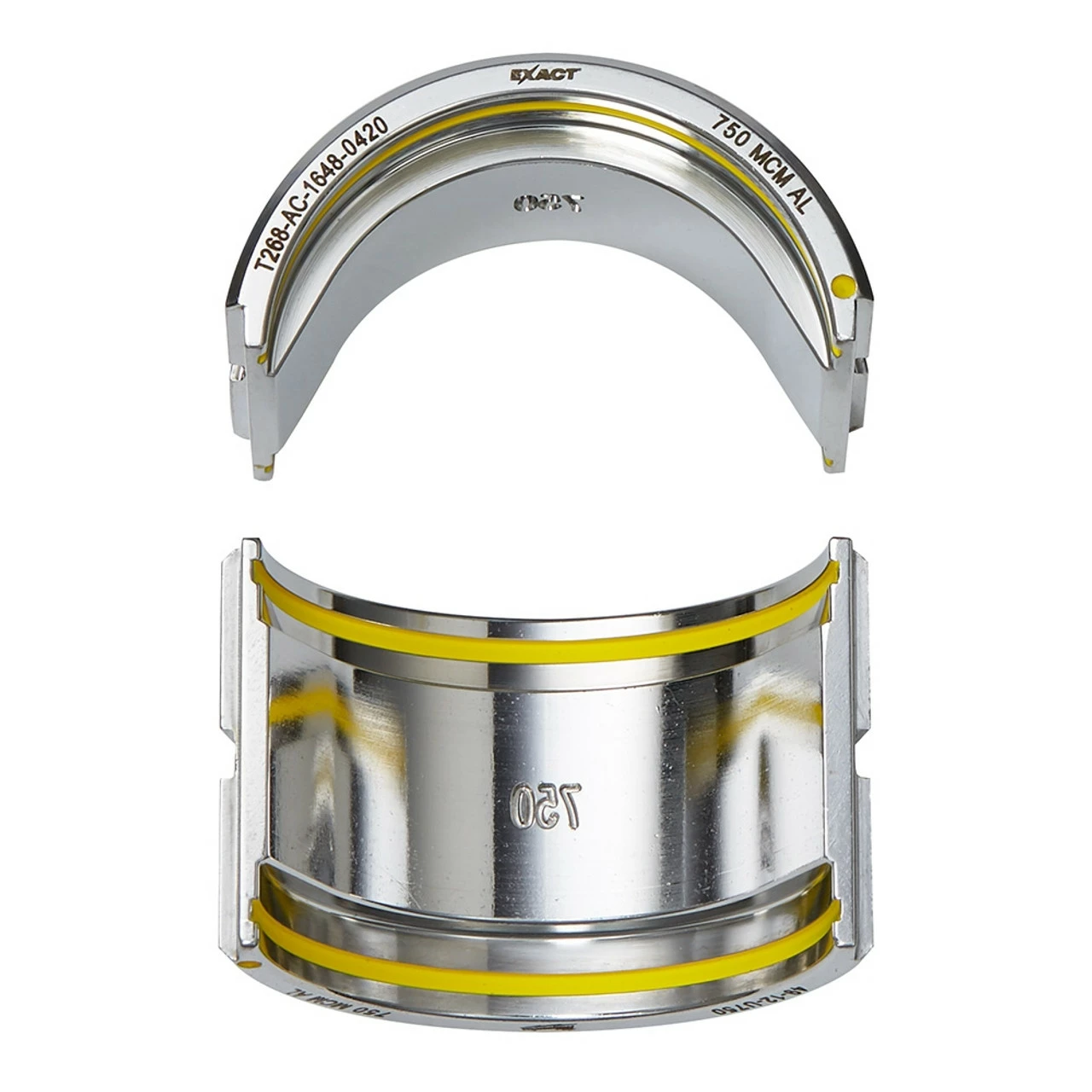

Milwaukee EXACT 750 MCM Aluminum 12T U-Style Die

Model Number: 49-12-U750

The M18 FORCE LOGIC 750 MCM Crimper is the Easiest Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 – 750 MCM Cu and Dual Rated Anderson, Blackburn Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. Milwaukee EXACT 12T U-Style Dies are individually engineered both for quality crimps and for faster connections on all sizes with die lengths specific to each connector. In addition, every EXACT 12T U-Style Die features vivid industry standard colors to indicate wire size and center alignment markings for easiest die selection and die alignment. All dies also eliminate cross-referencing by imprinting the wire size onto completed connectors and are the only dies that are 100 Percent serialized and measured for greatest accuracy and easiest inspection.

Features:

• Vivid Color Coding & Center Mark for Easiest Selection and Die Alignment
• Die Size Pressed into Connector matches wire size Eliminating Cross Referencing
• Stainless Steel Finish Protects Against Corrosion

Specifications:

• Warranty No Warranty

Includes:

• (1) EXACT 750 MCM Aluminum 12T U-Style Die (49-12-U750)
