Product

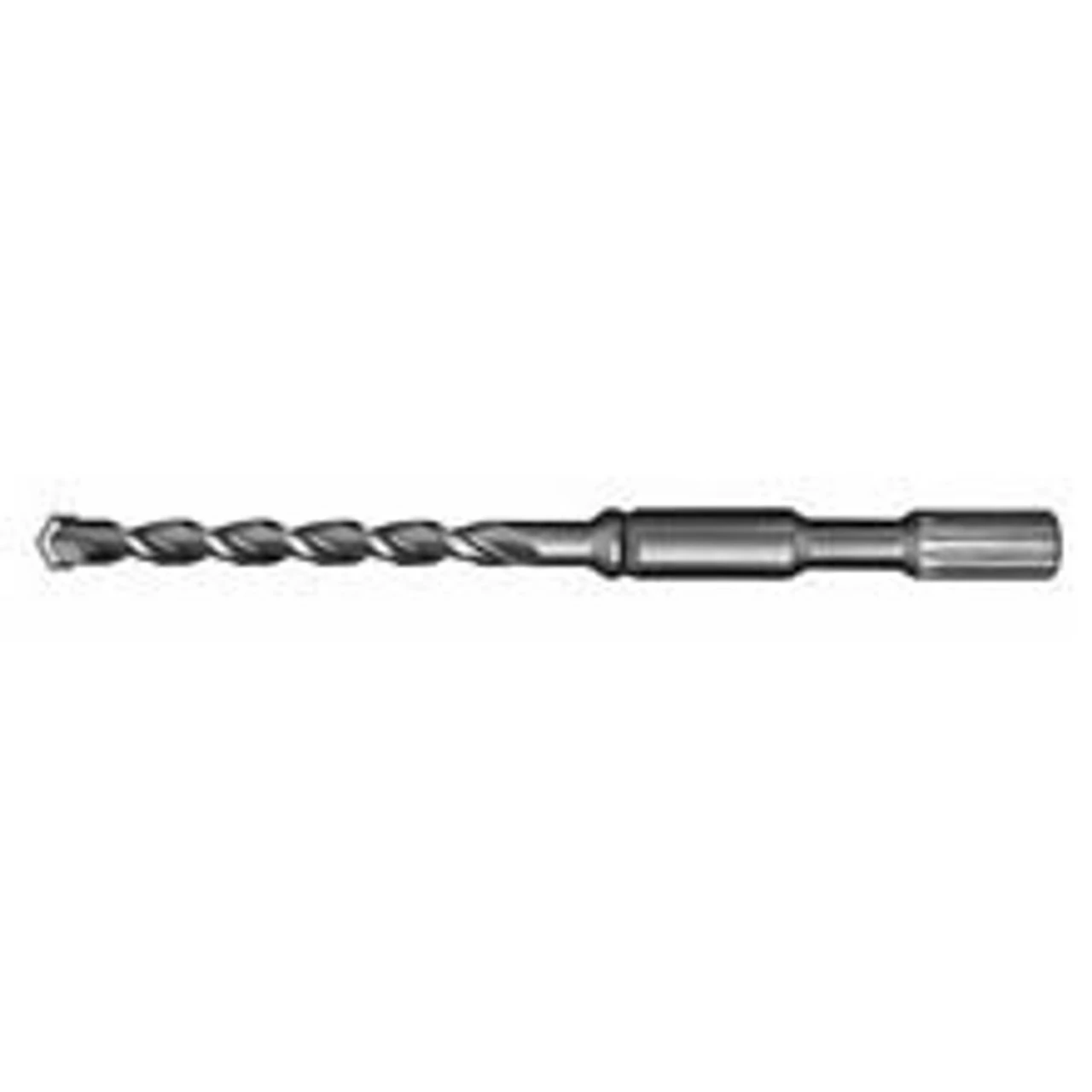

Milwaukee Spline Bit 2-Cutter 1/2 in. x 10 in.

Model Number: 48-20-4050

Two Cutter Spline Bits have a series of 12 spline that slide into an equal but opposite set of Spline in the drive system of the Spline Drive Hammer. This positive engagement of Spline to Spline allows maximum transmission of energy from the Hammer to the Bit. Superior quality carbide nibs are vacuum brazed to a heat treated steel body resulting in two cutting edges which pulverize the concrete as the bit turns and pounds the work surface. Available from 3/8 inch to 1-1/2 inch diameters as well as metric diameters. One per package.

Features:

• 1/2 in. diameter, 2-cutter head
• Spline shank
• Drilling depth 4 in.
• Overall length 10 in.

Specifications:

• Pack Qty 1
• Type Masonry Drill Bits
• Diameter 1/2 in.
• Length 10 in.
• Style Spline
• Useable Length 5 in.
• Cutter Geometry 2-Cutter

Includes:

• (1) Milwaukee 48-20-4050 Spline Bit 2-Cutter 1/2 in. x 10 in.
