Milwaukee M12 FUEL 1/2 in. Digital Torque Wrench with ONE-KEY

Model Number: 2466-20

Our M12 FUEL 1/2 in. Digital Torque Wrench w/ ONE-KEY is the industrys first torque wrench with a motor, delivering increased productivity, precise torque accuracy, and user demanded reporting functionality. The 1/2 in. torque wrench delivers 50 percent faster installation time, replacing the hand tool or two tool installation process and providing more control to reduce the over torquing of fasteners. The 1/2 in. digital torque wrench provides 10-150 ft-lbs of torque range and accuracy within 2 percent for torque critical fasteners. This battery powered torque wrench is equipped with Milwaukee ONE-KEY giving you the power to track, report, and manage your tool. This tool will record all of the fasteners that are saved and produce a downloadable report via ONE-KEY for the necessary parties requiring the data. ONE-KEY allows you to wirelessly connect to a smartphone to customize the tool settings, track its location, manage inventory, and lock the tool out for added security and protection for your investment.

Features:

• Delivers up to 50 Percent Faster installation by replacing the hand tool or two tool installation process with the POWERSTATE brushless motor and torque wrench in one tool
• Precise Torque Accuracy of up to +/- 2 percent CW, +/- 3 percent CCW of full scale for torque critical fasteners
• Faster, More Productive Torque Reporting w/ ONE-KEY providing torque data and customizable reports for inspectors or owners
• ONE-KEY technology allows for customization, tracking, tool security, and inventory management
• Adjustable run-down torque to control the tools output torque via the motor to prevent over torque
• REDLINK PLUS Electronic Intelligence enables advanced communication between batteries (not included) and tools for unmatched performance, protection, and productivity.
• REDLITHIUM batteries (not included) deliver more work per charge and more work over the life of the battery
• Four notification modes that the tool is reaching, meeting or exceeding the torque target (audible, LED, LCD, and vibratory)
• Four measurement modes (ft-lb, in-lb, Nm, Kgcm)
• Six pre-programmed languages including English, Spanish and French
• Durable design to withstand the most demanding jobsite environments
• Compatible with all M12 batteries & chargers

Specifications:

• Length 23.5 in.
• Torque Range 12.5 -150 ft-lbs
• Tool Accuracy CW: +/-2 percent of Full Scale/ CCW: +/-3 percent of Full Scale (Range: 20 – 100percent of Full Scale)
• Ratcheting Angle 4.5 degrees
• Anvil Size 1/2 in. Ball Detent
• RPM 0 – 100
• Available Presets 15
• Data Storage Capacity 28,500 Events
• Calibration 1 Year or 5,000 Cycles
• Measuring Units ft-lbs, in-lbs, Nm, kg-cm
• Torque Notifications LED Lights, LCD Screen, Sound, Handle Vibration
• Tool Warranty 5 years
• Weight 5.7 lbs
• Power Source Cordless

Includes:

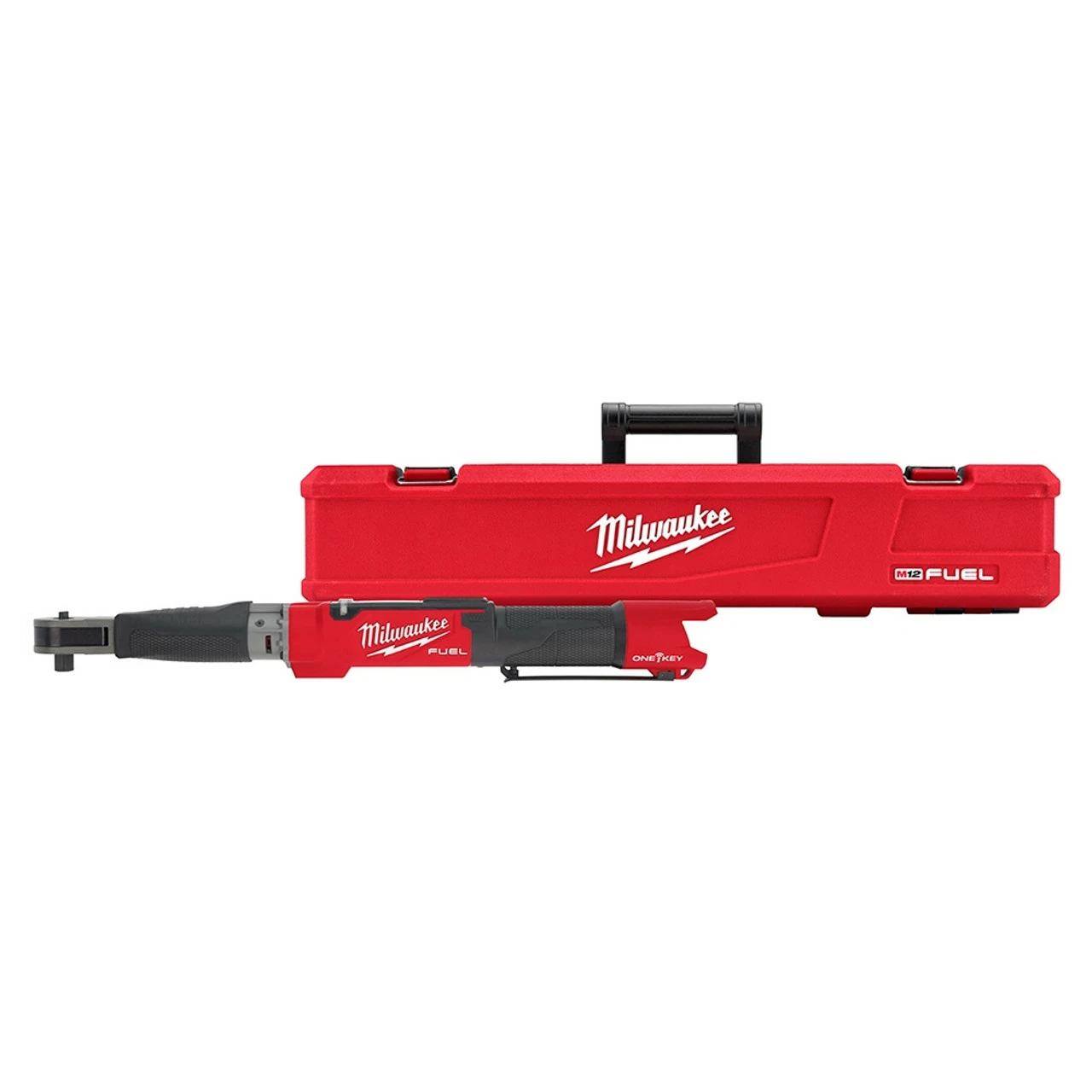

• (1) Milwaukee 2466-20 M12 FUEL 1/2 in. Digital Torque Wrench with ONE-KEY
• (1) Carrying Case
• (1) Calibration Certificate
