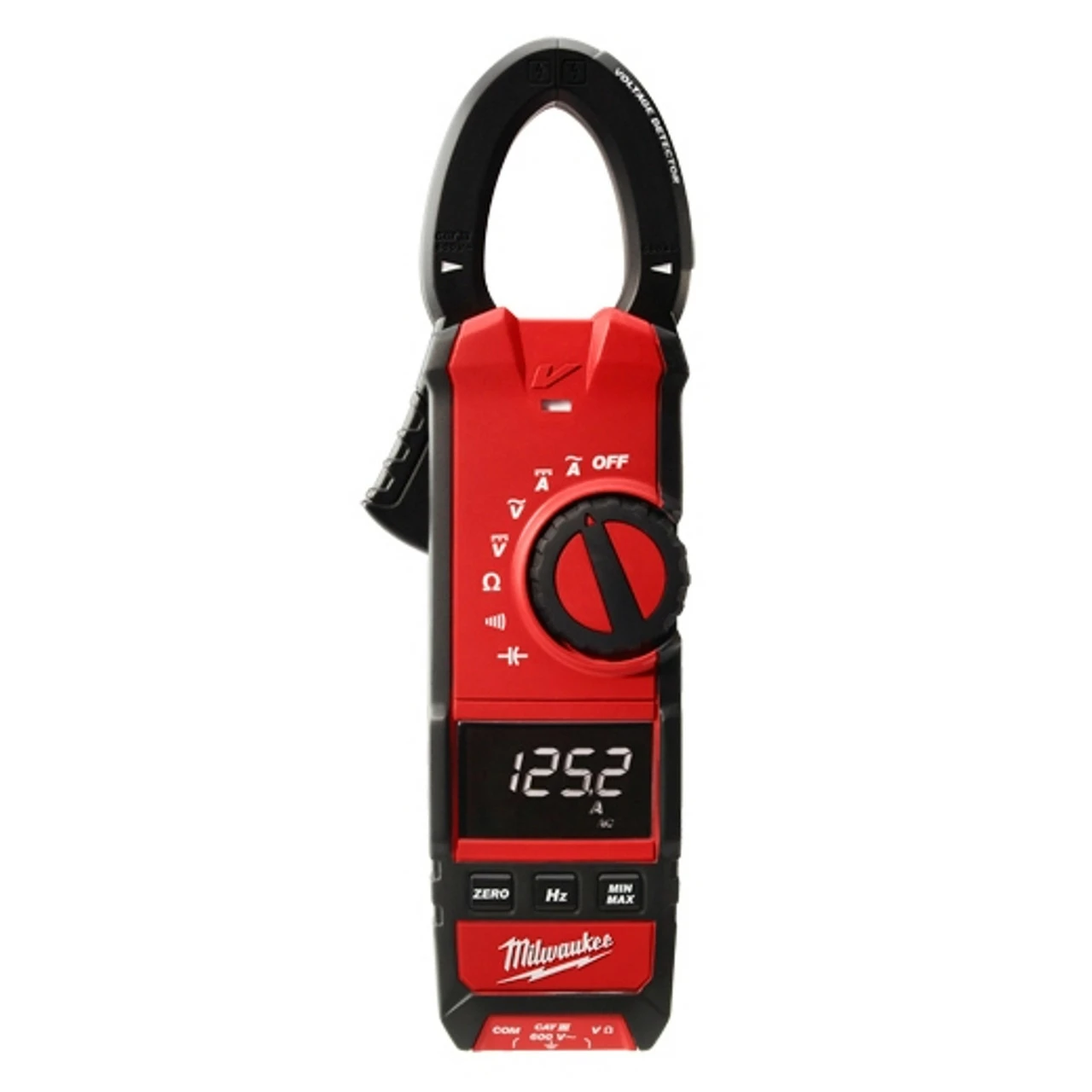

Milwaukee Clamp Meter 600V AD/DC

Model Number: 2237-20

The perfect tool for the professional electrician, this Clamp Meter provides a wide 1.3 in. jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. The Milwaukee Clamp Meter is a heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. In addition, the Milwaukee Clamp Meter was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity. Has a Milwaukee 5-Year Warranty

Features:

• Measures up to 600 amps AC/DC, Large 1.30 in. jaw opening
• Thin Jaw Profile for easier wire measurement in panels or in bundles
• Wide Voltage range to 600 AC/DC volts
• True-RMS for accurate measurement in all applications
• Built-In Voltage Detector and LED Work Light
• Frequency Measurement
• High Contrast, White on Black Display with Backlight for easy reading
• Rugged over-molding increases durability and user grip
• CAT III 600V for increased safety

Specifications:

• TRMS Yes
• Jaw Size 1.3 in.
• Safety Rating CAT III 600V
• Current AC 600A
• Current AC/DC 600A
• Voltage AC/DC 600V
• Frequency Yes
• Resistance 6 kOmega
• Continuity Yes
• Capacitance Yes
• Hold Yes
• Display Backlight Yes
• Display Type High Contrast White on Black
• Non-Contact Voltage Yes
• LED Work Light Yes
• Rugged Over-molding Yes
• Tool Warranty 5 Years
• Indication Visual (for NCVD)
• Switch Type Dial
• Battery Type Alkaline (AA)
• Length 9 1/2 in.

Includes:

• (1) Clamp Meter (2237-20)
• (1) Test Lead Set
• (2) AA Batteries
• (1) Manual
