Product

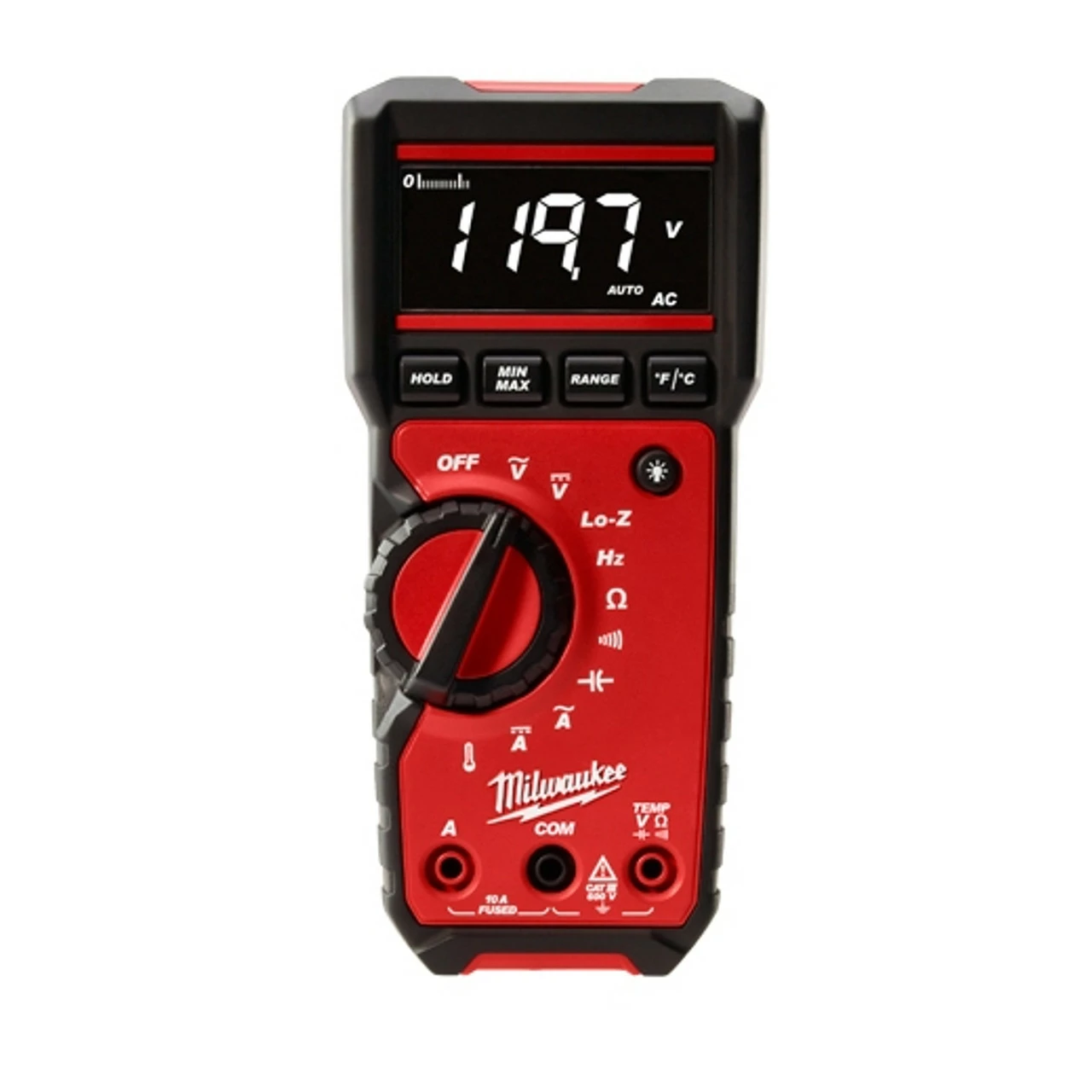

Milwaukee Digital Multimeter 6mV to 600V AC/600mV to 600V DC

Model Number: 2217-20

The Milwaukee True RMS Multimeter is a heavy duty meter for professional residential, commercial and industrial applications. The perfect tool for professional electricians, the 2217-20 offers functionality users expect with features that make doing the job easier. The 2217-20 True RMS Multimeter features a large white on black display for clearer readings, a slide rail system to add proprietary accessories and rugged over-molding for increased durability and grip. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This meter is covered by Milwaukees 5-Year Warranty.

Features:

• Wide Voltage range to 600 volts AC/DC
• Auto range to millivolts and milliamp ranges
• True RMS for accurate measurement in all applications
• Lo-Z measurement to eliminate ghost voltage
• Frequency measurements from 10Hz to 50kHz
• Contact temperature measurement from -40 to 752 degrees F
• Current Measurement to 10 amps AC/DC
• High Contrast, White on Black Display with Backlight for easy reading
• Rugged over-molding increases durability and user grip

Specifications:

• TRMS Yes
• Safety Category Rating CAT III 600V
• Voltage AC/DC 600V
• Lo-Z Yes
• Frequency 10 Hz – 50.00 kHz
• Resistance 40 Megaohm
• Continuity Audible
• Capacitance 1,000 microfarad
• Current AC/DC 10.00A
• Contact Temperature -40 degrees F to 752 degrees F (-40 degrees C to 400 degrees C)
• Backlight Yes
• Display Type White on Black LCD
• HOLD/MIN/MAX Yes
• Bargraph Yes
• Rugged Overmolding Yes
• Accessory Attachment Magnetic Meter Holder
• Tool Warranty 5 Years
• Battery Type Alkaline (AA)
• Calibration Needed Yes – Recommend calibration service once every year
• Switch Type Dial
• Length 6-1/2 in.

Includes:

• (1) True RMS Multimeter (2217-20)
• (1) Electrical Test Lead Set
• (1) Dual Banana Thermocouple
• (2) AA Batteries
• (1) Manual
