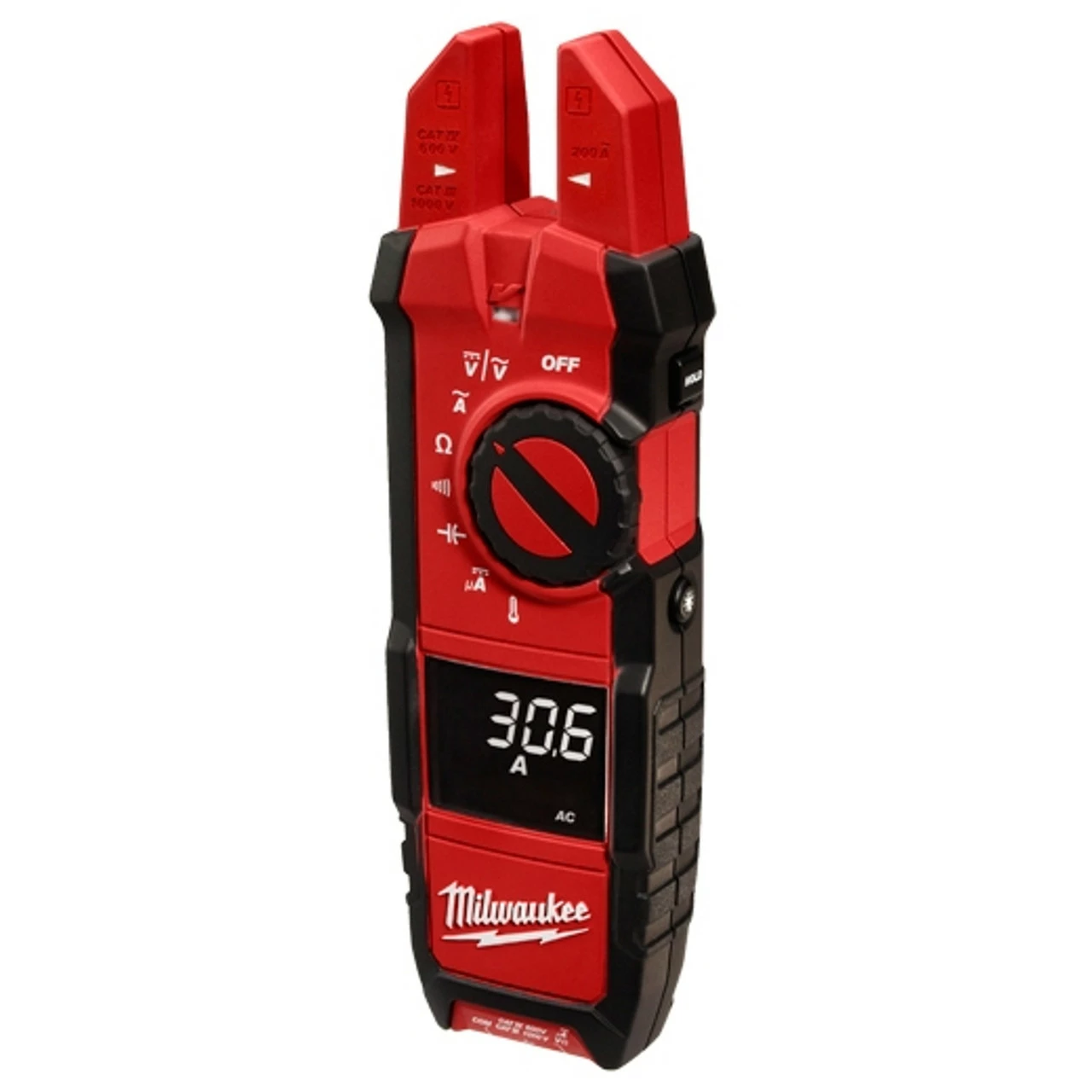

Milwaukee Fork Meter HVAC/R

Model Number: 2206-20

The Milwaukee Fork Meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in. fork opening, high 200amp current range and a high contrast white-on-black display. Covered by Milwaukee 5-Year Warranty.

Features:

• Measures up to 200 amps, Wide 0.63 in. jaw opening
• Wide Voltage range to 1000 volts AC /DC
• True-RMS for accurate measurement in all applications
• Built-In Voltage Detector and LED Work Light
• Thermocouple (dual banana) input for contact temperature measurement
• 600 microampere DC for Flame Rectification
• High Contrast, White on Black Display with Backlight for easy reading
• Rugged over-molding increases durability and user grip

Specifications:

• Current AC 200A
• Fork Opening .63 in.
• TRMS Yes
• Safety Rating CAT IV 600V / CAT III 1000V
• Microamps DC 1,000 microampere
• Voltage AC/DC 1000V
• Resistance 40 megaohm
• Continuity Audible
• Capacitance 1,000 microfarad
• Contact Temperature -40 degrees F to 752 degrees F (-40 degrees C to 400 degrees C)
• Display Backlight Yes
• Display Type White on Black LCD
• Non-Contact Voltage Yes
• LED Work Light Yes
• Rugged Over-molding Yes
• Tool Warranty 5 Years
• Switch Type Dial
• Battery Type Alkaline (AA)
• Length 8 in.

Includes:

• (1) Fork Meter for HVAC/R (2206-20)
• (1) Test Lead Set
• (1) Dual Banana Thermocouple
• (2) AA Batteries
• (1) Manual
